起重吊钩/吊环系列 眼型带翅抓钩

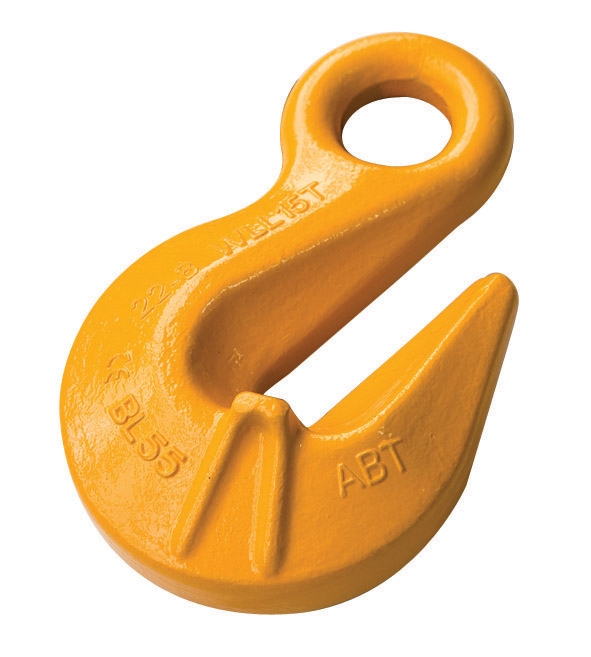

眼型带翅抓钩
|
规格 SIZE |
工作载荷 WLL.T |
E mm |
Ø mm |
H mm |
R mm |
自重 WEIGHT.KG |
|
6-8 |
1.2 |
8 |
13.5 |
16 |
42 |
0.175 |
|
7/8-8 |
2 |
10.8 |
17 |
24 |
54 |
0.307 |
|
10-8 |
3.2 |
13 |
20 |
29 |
79 |
0.75 |
|
13-8 |
5.4 |
16.5 |
26 |
42 |
99 |
1.4 |
|
16-8 |
8.2 |
19.2 |
30 |
46 |
106 |
2.3 |
|
20-8 |
12.5 |
24 |
37 |
55 |
140 |
4.6 |
|
22-8 |
16 |
28 |
44 |
69 |
165 |
8.2 |
|
26-8 |
21.2 |
30 |
41 |
77 |
187 |
9.8 |
|
32-8 |
31.5 |
38 |
57 |
95 |
229.5 |
19.4 |
