起重卸扣系列 高强度D型带螺母卸扣

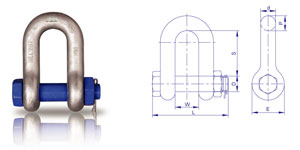

高强度D型带螺母卸扣：
额定载荷：T8级2t-80t; S6级0.5t-55t。
T8级为优质合金结构钢；S6级为合金结构钢。
最大试验载荷为额定工作载荷的2倍，最小破断载荷为额定工作载荷的4倍。
2t-80tT8级卸扣比相同尺寸的S6级卸扣承载能力高40%-100%。
110t T8级卸扣比相同尺寸的S6级卸扣承载能力高29%。
产品符合ISO2415-2004规定的技术要求和检测方法。
T(8)级
|
|
|
|
|
|
|
|
|
|
|
|
产品型号 |
额定载荷 |
W |
D |
d |
E |
P |
S |
L |
自重 |
|
T-DX2-3/8 |
2 |
17 |
12 |
9.5 |
23 |
9.5 |
32 |
54 |
0.13 |
|
T-DX2.5-7/16 |
2.5 |
19 |
14 |
11 |
27 |
11 |
36.5 |
62 |
0.21 |
|
T-DX3.25-1/2 |
3.25 |
20.5 |
16 |
13 |
30 |
13 |
41.5 |
71.5 |
0.28 |
|
T-DX5-5/8 |
5 |
27 |
20 |
16 |
38 |
16 |
51 |
89 |
0.6 |
|
T-DX7-3/4 |
7 |
32 |
22 |
19 |
46 |
20.5 |
60.5 |
105 |
1.04 |
|
T-DX9.5-7/8 |
9.5 |
36.5 |
27 |
22.5 |
53 |
24.5 |
71.5 |
121 |
1.63 |
|
T-DX12.5-1 |
12.5 |
43 |
30 |
25.5 |
60.5 |
25.5 |
81 |
136.5 |
2.38 |
|
T-DX15-1 1/8 |
15 |
46 |
33 |
29 |
68.5 |
32 |
91 |
149.5 |
3.59 |
|
T-DX18-1 1/4 |
18 |
51.5 |
36 |
32 |
76 |
35 |
100 |
164.5 |
4.65 |
|
T-DX21-1 3/8 |
21 |
57 |
39 |
35 |
84 |
38 |
111 |
179 |
6.71 |
|
T-DX30-1 1/2 |
30 |
60.5 |
42 |
38 |
92 |
41 |
122 |
194.5 |
8.05 |
|
T-DX40-1 3/4 |
40 |
73 |
52 |
44.5 |
106.5 |
54 |
146 |
234 |
13.18 |
|
T-DX50-2 |
50 |
82.5 |
60 |
51 |
122 |
51 |
171.5 |
262.5 |
19.3 |
|
T-DX80-2 1/2 |
80 |
105 |
72 |
66.5 |
144.5 |
66.5 |
203 |
339 |
37.22 |
|
T-DX110-3 |
110 |
127 |
85 |
76 |
165 |
89 |
216 |
394 |
65.3 |
S(6)级
|
|
|
|
|
|
|
|
|
|
|
|
产品型号 |
额定载荷 |
W |
D |
d |
E |
P |
S |
L |
自重 |
|
S-DX0.5-1/4 |
0.5 |
12 |
8 |
6.5 |
15.5 |
6.5 |
22 |
37 |
0.06 |
|
S-DX0.75-5/16 |
0.75 |
13.5 |
10 |
8 |
19 |
8 |
26 |
45 |
0.1 |
|
S-DX1-3/8 |
1 |
17 |
12 |
9.5 |
23 |
9.5 |
32 |
54 |
0.13 |
|
S-DX1.5-7/16 |
1.5 |
19 |
14 |
11 |
27 |
11 |
36.5 |
62 |
0.21 |
|
S-DX2-1/2 |
2 |
20.5 |
16 |
13 |
30 |
13 |
41.5 |
71.5 |
0.28 |
|
S-DX3.25-5/8 |
3.25 |
27 |
20 |
16 |
38 |
16 |
51 |
89 |
0.6 |
|
S-DX4.75-3/4 |
4.75 |
32 |
22 |
19 |
46 |
20.5 |
60.5 |
105 |
1.04 |
|
S-DX6.5-7/8 |
6.5 |
36.5 |
27 |
22.5 |
53 |
24.5 |
71.5 |
121 |
1.63 |
|
S-DX8.5-1 |
8.5 |
43 |
30 |
25.5 |
60.5 |
25.5 |
81 |
136.5 |
2.38 |
|
S-DX9.5-1 1/8 |
9.5 |
46 |
33 |
29 |
68.5 |
32 |
91 |
149.5 |
3.59 |
|
S-DX12-1 1/4 |
12 |
51.5 |
36 |
32 |
76 |
35 |
100 |
164.5 |
4.65 |
|
S-DX13.5-1 3/8 |
13.5 |
57 |
39 |
35 |
84 |
38 |
111 |
179 |
6.71 |
|
S-DX17-1 1/2 |
17 |
60.5 |
42 |
38 |
92 |
41 |
122 |
194.5 |
8.05 |
|
S-DX25-1 3/4 |
25 |
73 |
52 |
44.5 |
106.5 |
54 |
146 |
234 |
13.18 |
|
S-DX35-2 |
35 |
82.5 |
60 |
51 |
122 |
51 |
171.5 |
262.5 |
19.3 |
|
S-DX55-2 1/2 |
55 |
105 |
72 |
66.5 |
144.5 |
66.5 |
203 |
339 |
37.22 |
|
S-DX85-3 |
85 |
127 |
85 |
76 |
165 |
89 |
216 |
394 |
65.3 |
本公司还有大吨位卸扣。如果您所需要的卸扣吨位再大，可以与我司联系！
