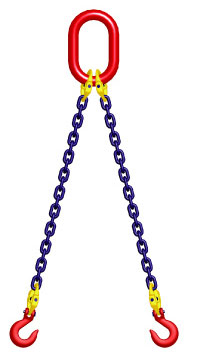

S(6)级双肢链条索具 | |
|
产品型号 | 链条直径 | 额定载荷 | 主吊环 | 链条重量 | |
α≤45° | 45°<α≤60° | AxBxd | |||
LSJ(H)2-6 | 6 | 1.4 | 1 | 65x130x16 | 0.79 |
LSJ(H)2-8 | 8 | 2.1 | 1.5 | 80x150x20 | 1.38 |
LSJ(H)2-10 | 10 | 3.5 | 2.5 | 90x160x24 | 2.2 |
LSJ(H)2-12 | 12 | 4.9 | 3.5 | 90x160x24 | 3.1 |
LSJ(H)2-14 | 14 | 7 | 5 | 100x190x28 | 4.13 |
LSJ(H)2-16 | 16 | 8.4 | 6 | 110x200x32 | 5.63 |
LSJ(H)2-18 | 18 | 11.2 | 8 | 120x230x34 | 6.85 |
LSJ(H)2-20 | 20 | 14 | 10 | 135x250x38 | 8.6 |
LSJ(H)2-22 | 22 | 16.8 | 12 | 140x270x42 | 10.2 |
LSJ(H)2-24 | 24 | 19.6 | 14 | 140x270x42 | 12.78 |
LSJ(H)2-26 | 26 | 23.8 | 17 | 160x310x46 | 14.87 |
LSJ(H)2-30 | 30 | 30.8 | 22 | 180x330x56 | 19.6 |
LSJ(H)2-34 | 34 | 40.6 | 29 | 210x410x68 | 22.7 |
